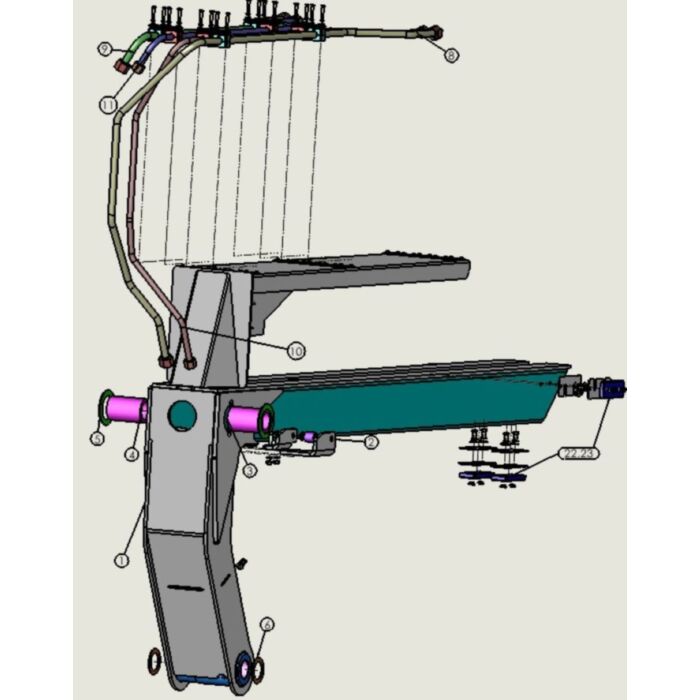

PowerPak PowerArm Inner Boom

In stock

Grouped product items
Item	Product Name	Needed
1	00-31384-04-AB Boom Inner Weldment	1
2	00-33708-00-OB Outside Arm Latch Ear	1
3	00-17412-00-OA Front Bushing	1
4	00-17416-00-OA Rear Bushing	1
5	440-044-000 Machinery Bushing	2
6	440-027-000 3" x 2 1/32" x 14GA Machinery Bushing	2
7	00-64018-01-AA Sensor Bracket Weldment	1
8	00-61631-01-AB G4 Dump Extend Tube Assembly	1
9	00-61630-01-AB G4 Grip Retract Tube Assembly	1
10	00-61632-01-AB G4 Dump Retract Tube Assembly	1
11	887-012-001 ORFS Bulkhead Nut	1
12	887-010-001 ORFS Bulkhead Nut	1
13	887-012-000 ORFS Bulkhead Union	1
14	887-010-000 ORFS Bulkhead Union	1
15	432-003-019 19MM Hose Clamp Set	4
16	432-003-016 16MM Hose Clamp Set	4
17	432-003-002 3 Size Clamp Cover Plate	8
18	415-004-028 1/4"-20 x 1" Hex Head Grade 5 Capscrew	16
19	485-008-004 1/4" Split Plated Lock Washer	16
20	485-004-001 1/4" SAE Flat Washer	16
21	00-29967-13-OA Thin Slide Block	4
22	00-29967-11-OA Slide Block	4
23	00-39472-00-OA Slide Block Shim	8
24	00-60511-00-OA Slide Block Retainer	4
25	485-006-001 3/8" Plated SAE Flat Washer	10
26	415-006-012 3/8"-16 x 3/4" Grade 5 Hex Head Capscrew	8
27	00-33709-00-OB Inside Arm Latch Ear	1
28	00-31456-00-OA Rack Roller	1
29	415-006-020 3/8"-16 x 1 1/4" Grade 5 Hex Head Capscrew	2
30	440-029-000 3/8" Plated Lock Washer	4
31	445-006-001 3/8"-16 Hex Grade 5 Nut	2
32	415-006-016 3/8"-16 x 1" Grade 5 Hex Head Capscrew	2
33	440-010-000 Machinery Bushing	2
