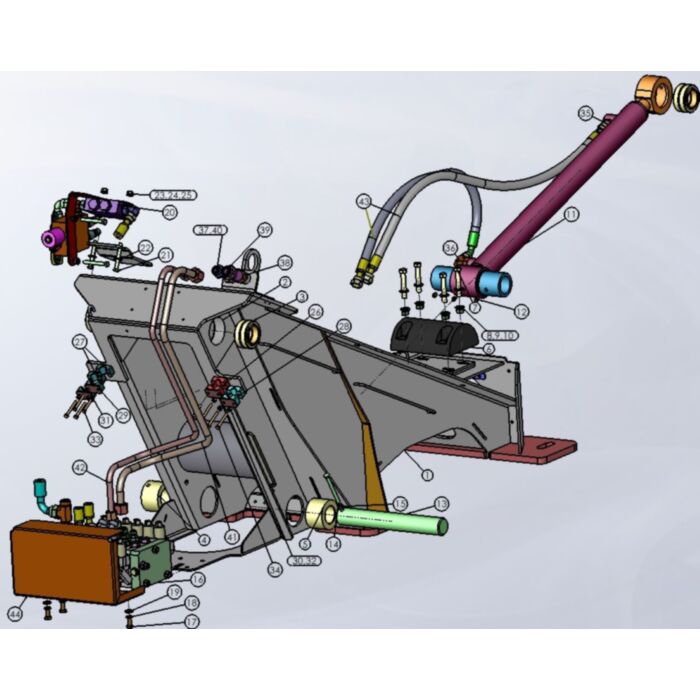

main product photo
Toggle View 360
Toggle Zoom Fullscreen
Add to Wish List

PowerPak PowerArm Saddle

In stock
SKU
PowerPak PowerArm Saddle
Add to Compare
Be the first to review this product
Grouped product items
Item Product Name Needed
1

00-31408-15-AB

EPC Arm Saddle Weldment

 		1
2

00-37979-00-AA

Boom Pivot Bearing Assembly

 		2
3

130-004-000

Spherical Bushing

 		3
4

00-29933-00-OA

Cylinder Pin Boss

 		1
5

00-29933-01-OA

Cylinder Pin Boss

 		1
6

400-004-000

Lift Arm Pad

 		1
7

415-008-048

1/2" x 3" Capscrew

 		4
8

485-008-001

1/2" Hardened Plated SAE Flat Washer

 		8
9

485-008-002

1/2" Plated Lock Washer

 		4
10

445-008-003

1/2"-13 Grade 5 Plated Hex Nut

 		4
11

00-39097-00-AB

EPC Arm Lift Cylinder

 		1
12

400-041-000

1/8" NPS Grease Fitting

 		3
13

00-12693-00-OA

Arm Lift Cylinder Pin

 		1
14

415-006-064

3/8"-16 x 4" Grade 5 Capscrew

 		1
15

00-61633-02-AB

G4 EPC Arm Valve Assembly

 		1
16

415-910-025

10MM x 25MM Class 8.8 Capscrew

 		3
17

485-007-002

7/16" Split CAD Plated Lock Washer

 		3
18

485-007-003

7/16" Hardened Plated Flat Washer

 		6
19

00-62914-02-AA

Gripper Valve Assembly

 		1
20

415-006-048

3/8"-16 x 3" Grade 5 Hex Head Capscrew

 		4
21

485-006-003

3/8" USS Plated Flat Washer

 		2
22

440-029-000

3/8" Plated Lock Washer

 		4
23

445-006-001

3/8"-16 Hex Grade 5 Nut

 		4
24

485-006-001

3/8" Plated SAE Flat Washer

 		2
25

432-003-016

16MM Hose Clamp Set

 		1
26

432-003-023

25MM Hose Clamp Set

 		2
27

432-003-019

19MM Hose Clamp Set

 		1
28

432-003-002

3 Size Clamp Cover Plate

 		4
29

485-008-004

1/4" Split Plated Lock Washer

 		8
30

485-004-001

1/4" SAE Flat Washer

 		2
31

445-004-001

1/4" 20 Plated Nut

 		6
32

415-004-032

1/4"-20 x 2" Capscrew

 		2
33

415-004-036

1/4"-20 x 2 1/4" Capscrew

 		6
34

880-008-010

Straight ORB ORFS Connector

 		1
35

882-012-010

90 Degree ORB ORFS Connector

 		1
36

887-010-000

ORFS Bulkhead Union

 		1
37

887-010-001

ORFS Bulkhead Nut

 		1
38

887-012-000

ORFS Bulkhead Union

 		1
39

887-012-001

ORFS Bulkhead Nut

 		1
40

00-62627-01-AB

Dump Tube Assembly

 		1
41

00-62628-01-AB

Dump Tube Assembly

 		1
42

07-52019-00-R

1.35" ID Hose Covering

 		2
43

00-64898-01-OA

Arm Valve Cover

 		1
