Quantum Medium Single Spool Tap In Kit

In stock

Grouped product items

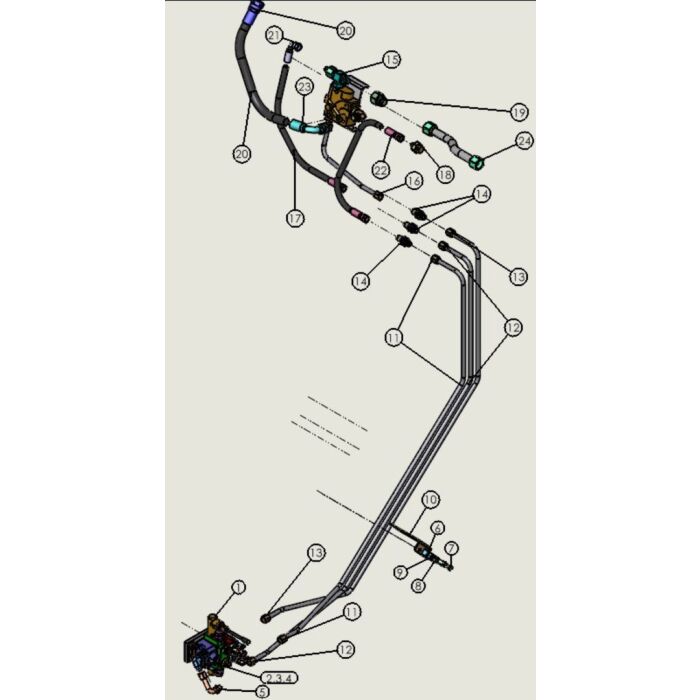

Item	Product Name	Needed
1	00-60903-01-AB Tap In Kit Valve Assembly	1
2	415-005-012 5/16"-18 x 3/4" Hex Head Capscrew	4
3	470-031-000 5/16" Split Plated Lock Washer	4
4	485-005-003 5/16" Flat SAE Washer	4
5	848-008-001 Long Tube Elbow	1
6	400-015-008 1/2" ID Support Clamp	3
7	415-006-016 3/8"-16 x 1" Grade 5 Hex Head Capscrew	2
8	440-029-000 3/8" Plated Lock Washer	2
9	445-006-001 3/8"-16 Hex Grade 5 Nut	2
10	00-36321-02-OA Tube Mount Bracket	1
11	00-65519-02-AB Return Tube Assembly	1
12	00-65518-02-AB Power Beyond Tube Assembly	1
13	00-65517-02-AB Pressure Tube Assembly	1
14	805-008-000 Bulkhead Union	3
15	00-36210-01-AB Flow Control Valve Assembly	1
16	00-65520-00-AA Pressure Tube Assembly	1
17	G06E08E08-026 Hose Assembly	2
18	841-012-008 Male JIC Male O-Ring Adapter	1
19	858-012-016 Male Tube End Expander	1
20	G12E16G12-024 Hose Assembly	1
21	564-008-006 1/2" Tube x 3/8" Hose JIC 90 Degree Elbow Hose End	1
22	563-008-006 1/2" Tube x 3/8" Hose JIC Hose End	1
23	564-012-012 3/4" Tube x 3/4" Hose JIC 90 Degree Elbow Hose End	1
24	00-65515-11-AA Pressure Tube Assembly	1
