Quantum Small Winch Install

In stock

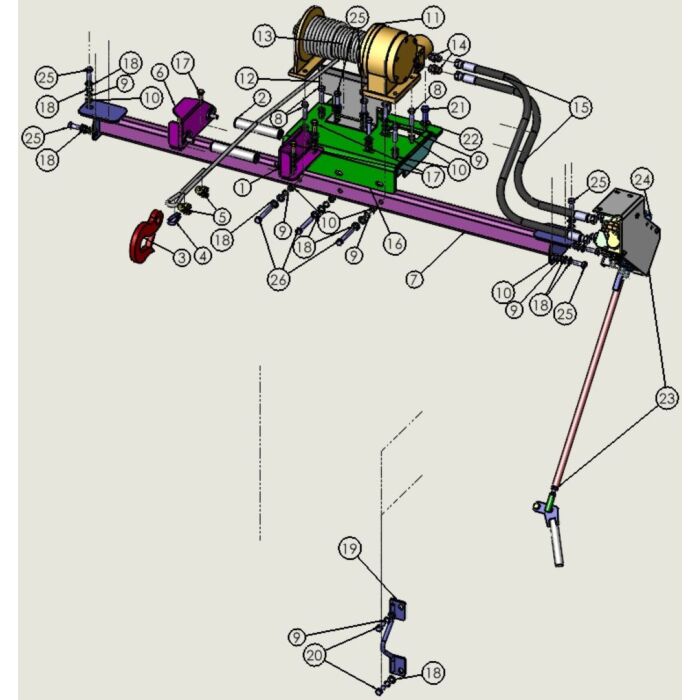

Grouped product items
Item	Product Name	Needed
1	00-38854-04-AA Left Hand Roller Guide Weldment	1
2	00-38853-00-AA Cable Guide Pipe Assembly	2
3	620-065-000 Sling Hook with Safety Latch Kit	1
4	638-008-008 Thimble	1
5	410-006-000 7/16" Cable Clamp	2
6	00-38854-03-AA Right Hand Roller Guide Weldment	1
7	00-66004-01-AB Winch Mounting Tube Weldment	1
8	415-808-032 1/2"-13 x 2" Grade 8 Plated Capscrew	6
9	485-008-002 1/2" Plated Lock Washer	23
10	445-008-003 1/2"-13 Grade 5 Plated Hex Nut	21
11	638-019-040 4000LB Winch	1
12	00-33868-01-OA Winch Cable Guide	1
13	841-010-010 Male JIC Male O-Ring Adapter	2
14	G10E10E10-042 Sweep Hose Assembly	2
15	00-66006-01-AB Winch Mounting Plate Weldment	1
16	415-008-020 1/2"-13 x 1 1/4" Grade 5 Hex Head Capscrew	4
17	485-008-001 1/2" Hardened Plated SAE Flat Washer	34
18	00-66057-00-AA Winch Hook Tab Weldment	1
19	415-808-020 1/2"-13 x 1 1/4" Grade 8 Capscrew	2
20	415-810-024 Grade 8 Capscrew	3
21	485-010-018 21/32" ID x 1 1/8" OD Hardened Flat Washer	3
22	00-66989-01-AA Control Handle Kit	1
23	00-38762-03-AB Two Options Valve Assembly	1
24	415-808-024 1/2" x 1 1/2" Grade 8 Hex Capscrew	8
25	415-808-056 1/2"-13 x 3 1/2" Hex Head Grade 8 Capscrew	3
