Quantum XL Chassis Hydraulic Pack on Go

In stock

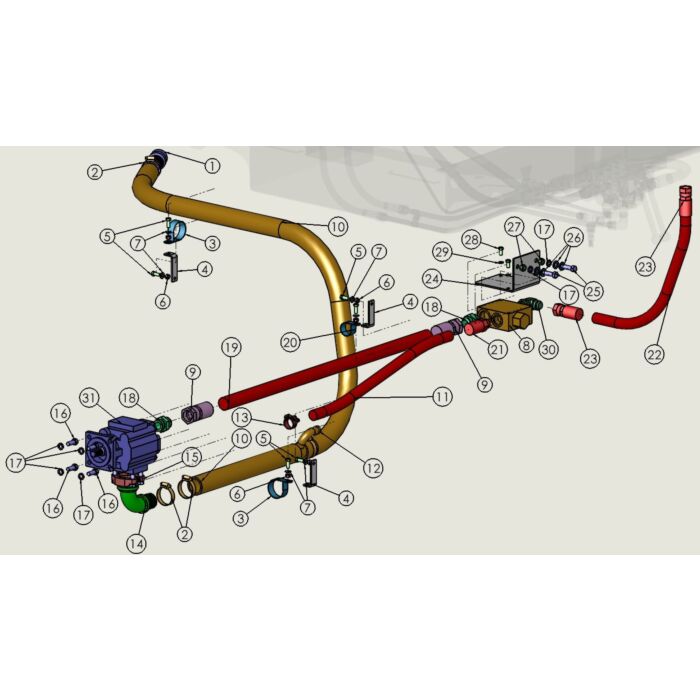

Grouped product items
Item	Product Name	Needed
1	520-032-000 2" Hose Barb	1
2	430-009-000 Hose Clamp	4
3	400-015-040 2.5" ID Hose Support Clamp	2
4	00-32567-00-OA Hose Mount Angle	3
5	415-006-016 3/8"-16 x 1" Grade 5 Hex Head Capscrew	6
6	485-006-001 3/8" Plated SAE Flat Washer	6
7	00-39057-00-AA Flow Regulator Valve	1
8	563-020-020 JIC Hose End	2
9	00-39076-00-AA Suction Tube Assembly	1
10	430-016-001 T-Bolt Clamp	1
11	520-032-001 2" Flange x 2" Hose 90 Degree Elbow	1
12	520-032-002 2" Flange Kit	1
13	415-808-020 1/2"-13 x 1 1/4" Grade 8 Capscrew	4
14	485-008-002 1/2" Plated Lock Washer	6
15	841-020-020 Male JIC Male O-Ring Adapter	2
16	06-52020-08-R 1 1/4" ID Pressure Hydraulic Hose (per ft)	1
17	400-015-028 Hose Support Clamp	1
18	565-016-016 1" Hose x 1 5/16"-12 Male O-Ring Hose End	1
19	563-016-016 1" Tube x 1" Hose JIC Hose End	2
20	00-39178-00-OA Flow Regulator Valve Bracket	1
21	415-808-024 1/2" x 1 1/2" Grade 8 Hex Capscrew	4
22	485-008-001 1/2" Hardened Plated SAE Flat Washer	2
23	445-008-003 1/2"-13 Grade 5 Plated Hex Nut	2
24	415-006-012 3/8"-16 x 3/4" Grade 5 Hex Head Capscrew	2
25	440-029-000 3/8" Plated Lock Washer	1
26	842-016-016 Male JIC Male O-Ring Elbow	1
27	530-086-001 7/8"-13 SAE B Flange Hydraulic PTO Mount Pump	0
