Titan Chassis Mounting Prep with Service Hoist

In stock

Grouped product items

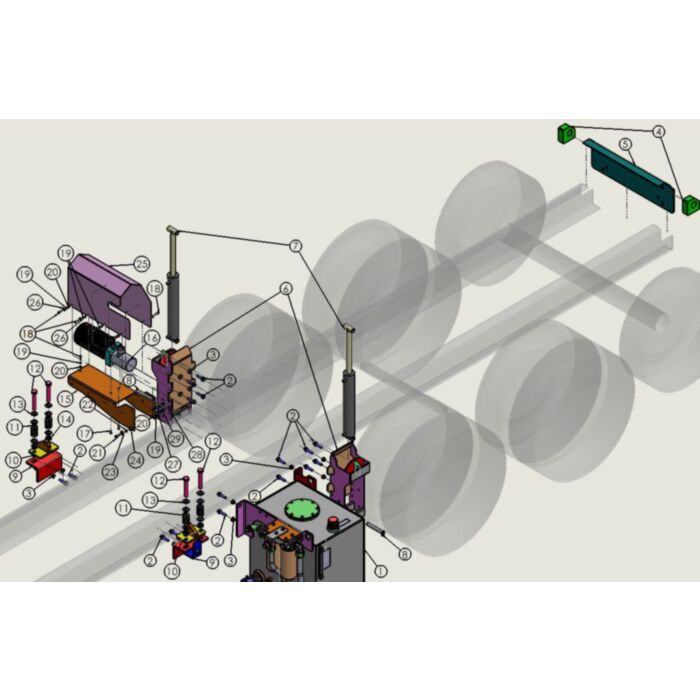

Item	Product Name	Needed
1	00-69437-00-AB Hydraulic Tank Assembly	1
2	416-710-040 Hex Flange Frame Bolt	16
3	445-710-001 5/8"-18 Hex Glange Frame Nut	16
4	00-66626-01-OA Hinge Shaft Plate	2
5	00-27378-13-OB Chassis Frame End Cap	1
6	00-69508-00-AB Hoist Cylinder Support Weldment	2
7	00-37835-03-AB Service Hoist Cylinder	2
8	00-61432-01-AA Service Hoist Pin Weldment	2
9	00-69519-00-AA Hold Down Bracket Weldment	2
10	00-69522-00-AA Hold Down Ear Weldment	2
11	00-37281-00-OA Hold Down Spring	4
12	415-816-096 1"-8 x 6" Hex Grade 8 Capscrew	4
13	485-816-000 1" Grade 8 Flat Washer	12
14	445-016-001 1" Grade 8 Lock Hex Nut	4
15	00-69523-00-OA Power Unit Bracket	1
16	335-023-000 Service Hoist Power Unit	1
17	415-006-012 3/8"-16 x 3/4" Grade 5 Hex Head Capscrew	2
18	415-006-016 3/8"-16 x 1" Grade 5 Hex Head Capscrew	9
19	440-029-000 3/8" Plated Lock Washer	13
20	445-006-001 3/8"-16 Hex Grade 5 Nut	11
21	415-008-020 1/2"-13 x 1 1/4" Grade 5 Hex Head Capscrew	2
22	485-008-002 1/2" Plated Lock Washer	2
23	485-008-000 1/2" Plated Flat Washer	2
24	445-008-003 1/2"-13 Grade 5 Plated Hex Nut	2
25	00-69526-00-AA Power Unit Cover Weldment	1
26	485-006-003 3/8" USS Plated Flat Washer	8
27	400-015-012 3/4" ID Support Clamp	2
28	415-006-020 3/8"-16 x 1 1/4" Grade 5 Hex Head Capscrew	2
29	464-006-006 3/8" ID x 3/8" Long Spacer	2
